Pilot Water Treatment Plant - Design Build Set

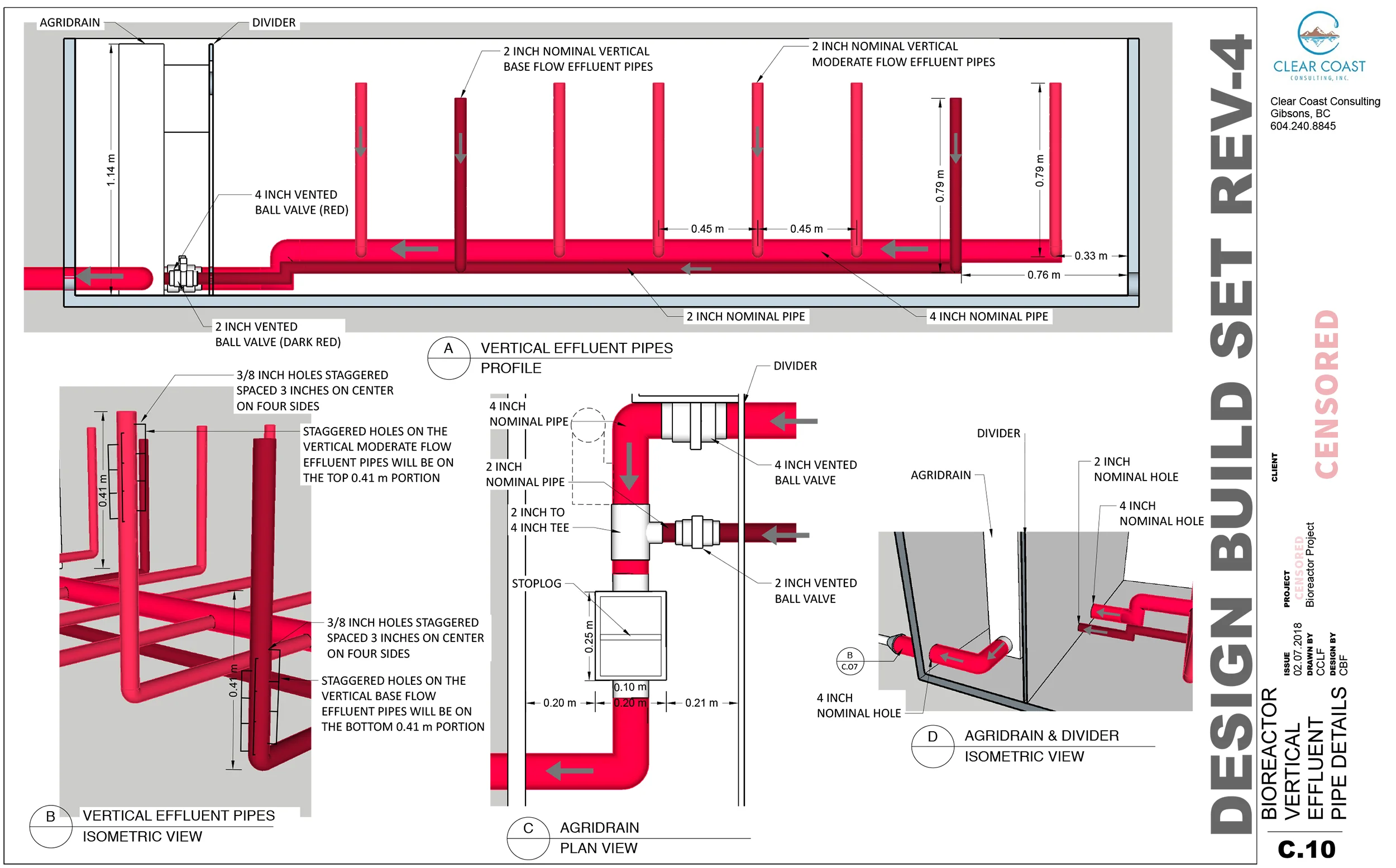

BIOREACTOR PLAN PAGE

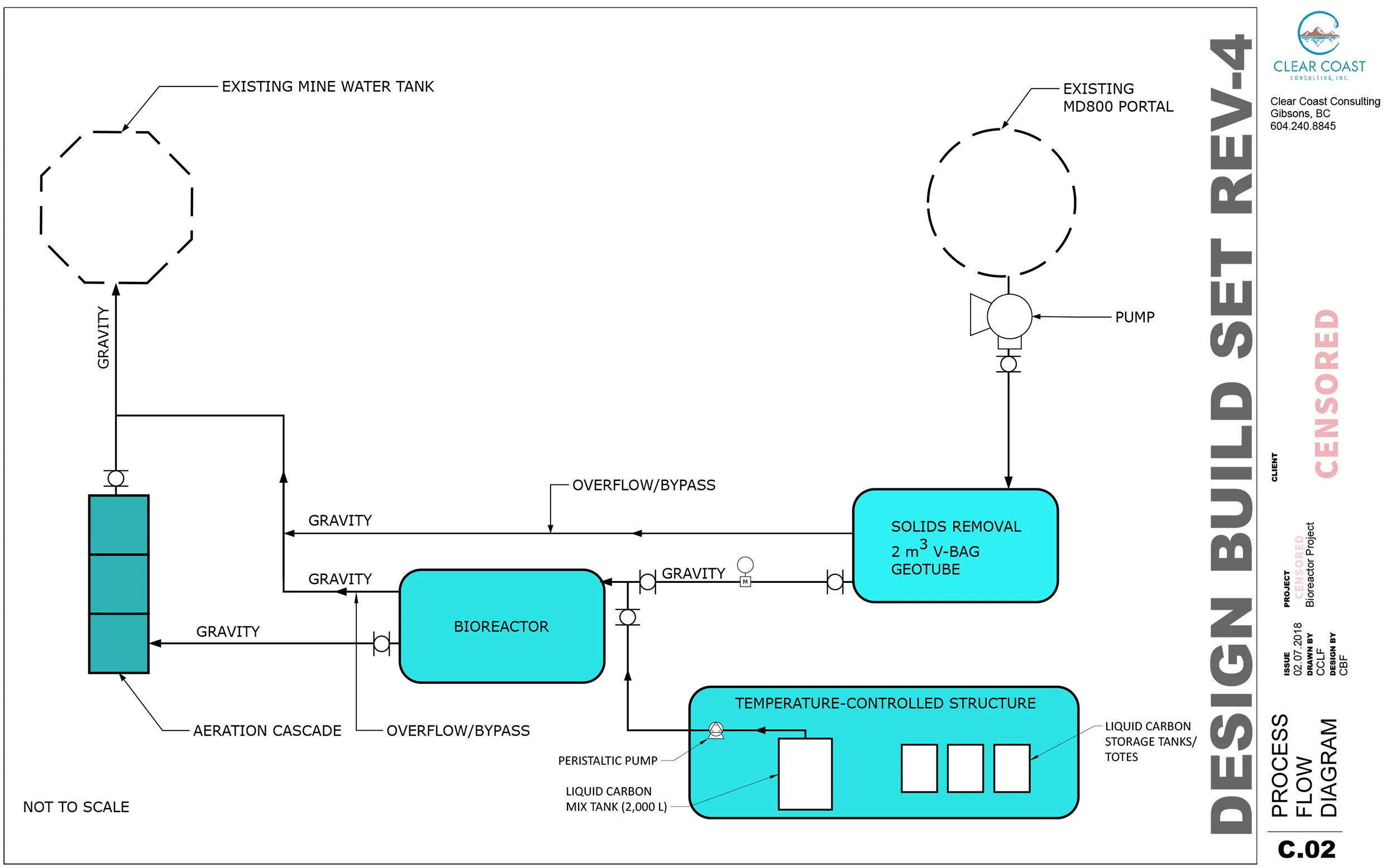

This client is located in British Colombia, Canada. The project required a full design build set that included a title page, process flow diagram, site plan, grading plan, plan view/profile/isometric/detail drawings and 3-dimensional renderings.

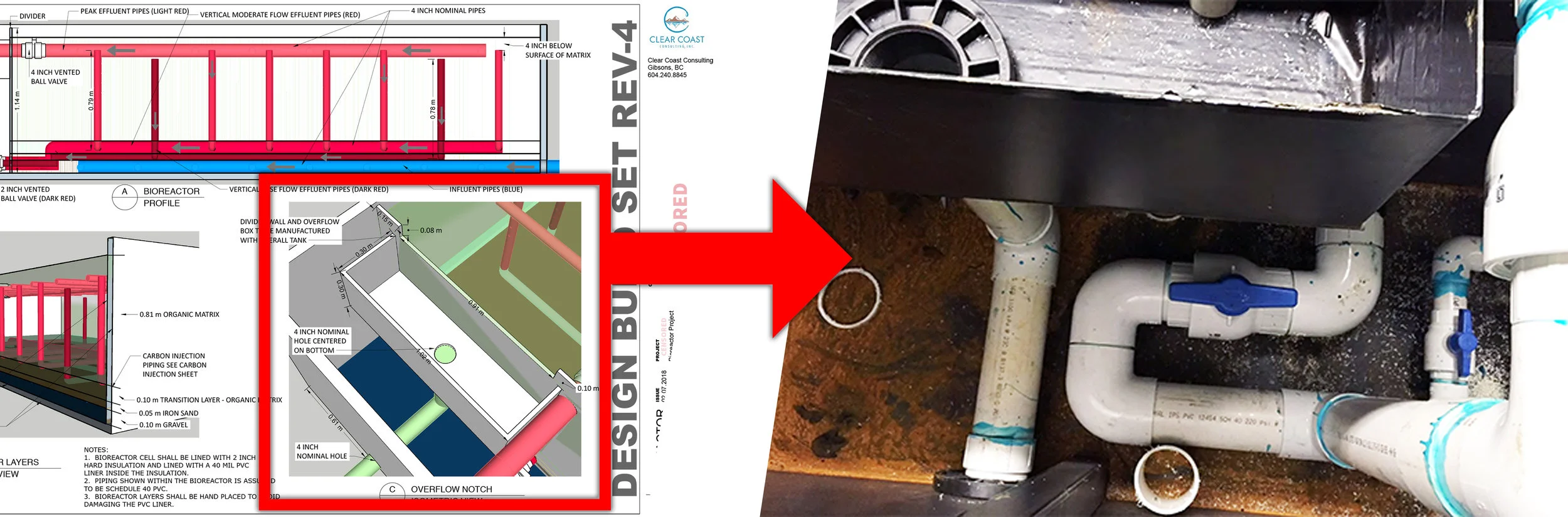

FROM DRAWINGS...TO THE FIELD




Riparian Shadow Study

This animation was the final product delivered to the client displaying the course of shade throughout the day. Sped up for viewing purposes.

The client for this project needed a study done to model the shade along the river through their property. The river's alignment with the sun and lack of tall vegetation on the banks causes the water to heat up significantly during the summer. When water temperatures get high, the fish become lethargic. The task was to develop a full 3-dimensional geological rendering of the river corridor to test the existing shadows. Then, to propose and model strategic areas where trees can be planted to provide the most shade. It was necessary to create the terrain, place the river and place existing trees/shrubs along the banks to complete the study.

To build the model, in-depth research on water and temperatures on the river was required. Then careful study and analyzation of the property to place trees and shrubs in the model

To build the model, in-depth research on water and temperatures on the river was required. Then careful study and analyzation of the property to place trees and shrubs in the model

More process of studying the property and existing vegetation to transfer to the model (each main tree and shrub was represented in a specific way).

More process of studying the property and existing vegetation to transfer to the model (each main tree and shrub was represented in a specific way).




Wetland Project - Design Build Plan

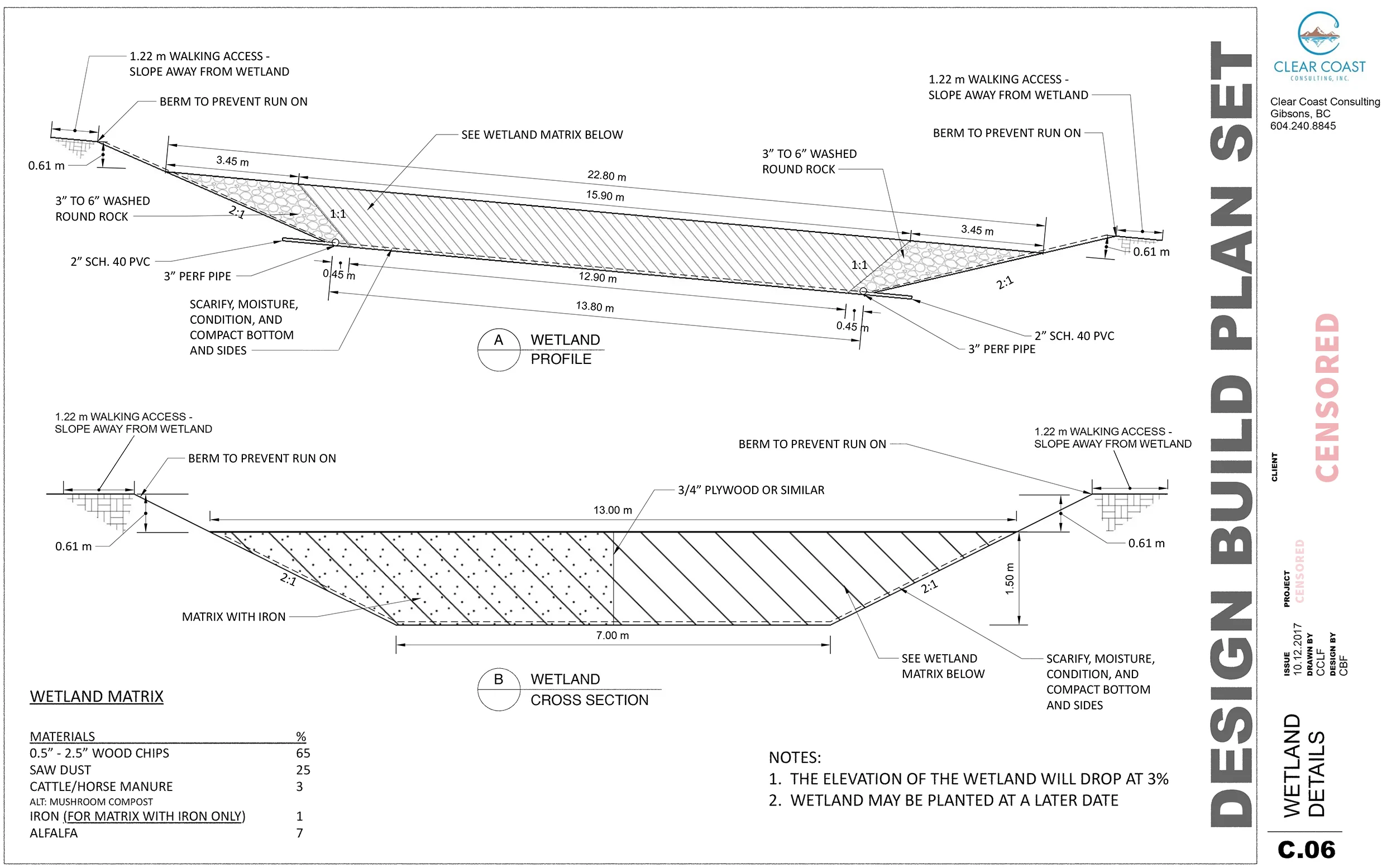

Another client in B.C., Canada, required a design build plan set including a site plan, profile and cross section drawings.




Rocky Mountain Pond Concept

This particular client was interested in developing a pond(s) on their land in the Rocky Mountains. Before beginning a design build plan, they wanted to see where the pond(s) could be placed and would affect the overall look of the original scenes.

Photoshop was used to developed and illustrate four different views and due to Colorado's vast seasonal changes, they were presented in both summer and winter-like scenes. Displayed are two of the views and their variations.

Original Photo

Summer Concept

Winter Concept

Original Photo #2

Summer Concept #2

Winter Concept #2




Wash Restoration Project - Alignments

This client in Arizonia needed alignment sheets for an initial site survey.

Title page

Title page

Excerpt from the alignment sheets

Excerpt from the alignment sheets




Gravel Mine - Figure

This figure is a pull-out from a project located in Southern Colorado. The client needed a base map/site plan as well as detail drawings (not shown). The site plan included reconstructing site contours, importing survey points, and determining area locations.
